Agent Architecture Patterns: Reasoning Cores, Tools, And Memory

Strong enterprise AI agents are not built from scratch every time.

Reliable systems usually follow recognizable AI agent architecture patterns that make them easier to:

• build
• maintain
• monitor
• govern
• scale

An enterprise AI agent is not simply a prompt wrapped around a language model.

It is a connected system made up of several layers:

• reasoning core
• knowledge layer
• tool layer
• memory layer
• guardrails and observability

Each layer has a different responsibility.

If one is weak, the entire agent can become unreliable in production.

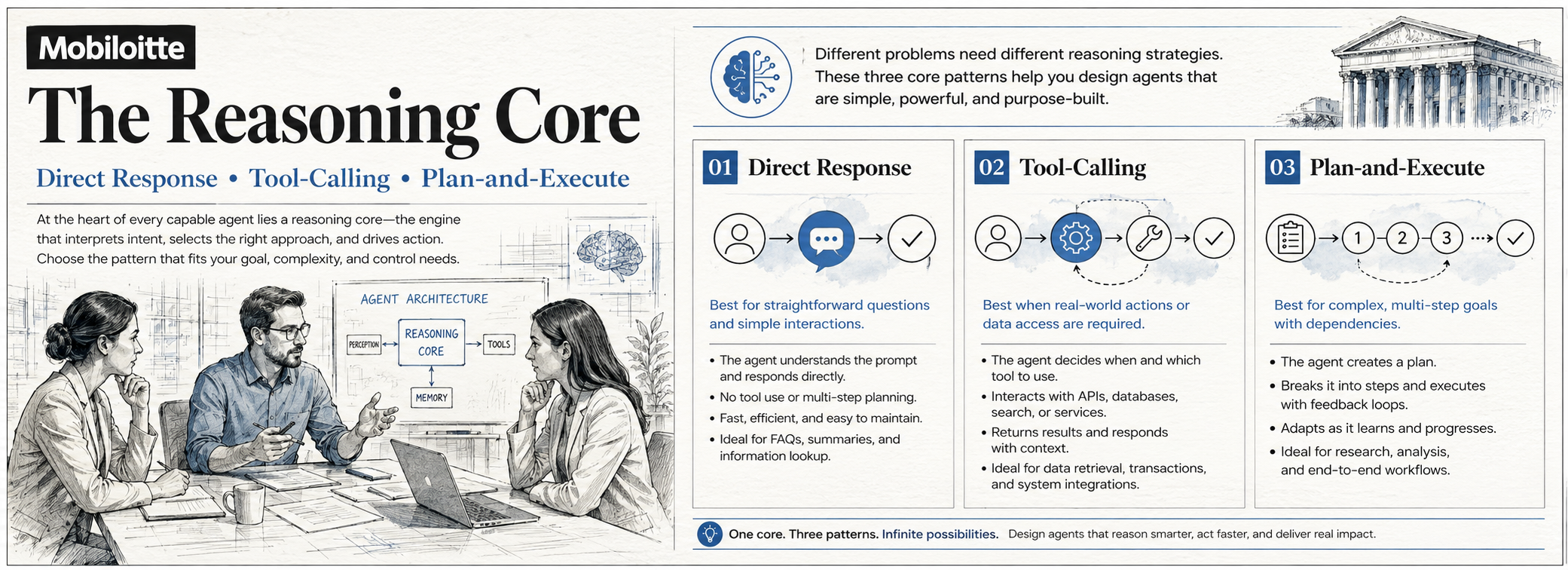

The Reasoning Core

The reasoning core determines what the agent should do next.

It typically combines the language model with orchestration logic that decides whether the system should:

• answer directly
• retrieve knowledge
• call a tool
• ask for clarification
• execute several steps

There are three common patterns.

1. Direct Response

The simplest pattern is direct response.

The agent receives a request and produces an answer using:

• model capability
• conversation context
• retrieved information

This works well for:

• explanations
• summaries
• simple knowledge questions
• low-risk assistance

It is fast and relatively easy to control.

But it is not enough when the agent needs to act on another system.

2. Tool Calling

AI agent tool calling allows the model to select and execute approved functions.

For example, an agent may:

• check an order
• retrieve a CRM record
• create a support ticket
• schedule a meeting
• call an API

The general flow is:

User request

→ agent decides a tool is needed

→ tool selected

→ parameters generated

→ tool executed

→ result returned to the agent

→ final response generated

This turns the agent from a conversational interface into an operational layer.

AI API Integration & LLM Layer becomes especially relevant when agents need controlled access to enterprise APIs and services.

3. Plan-and-Execute

More complex agents may first create a plan.

They then execute the individual steps.

For example:

Investigate customer issue

→ retrieve account

→ review previous tickets

→ check service status

→ determine likely cause

→ recommend or execute next action

This pattern can support:

• research
• troubleshooting
• case resolution
• multi-step automation

It is powerful, but it also requires stronger controls.

Agentic AI Workflows are most useful where an agent must coordinate several decisions or actions instead of performing a single request.

The Knowledge Layer

Enterprise agents usually need access to organization-specific information.

This may include:

• policies
• product documentation
• SOPs
• contracts
• support articles
• internal knowledge
• customer information

The agent should not depend entirely on what the base model already knows.

A common pattern is retrieval-augmented generation, or RAG.

The agent retrieves relevant enterprise information before producing its answer.

Enterprise RAG systems can provide this grounded knowledge layer.

RAG Quality Depends on More Than Retrieval

A RAG system is only useful if the correct information is retrieved.

Quality depends on factors such as:

• source selection
• document structure
• chunking
• embeddings
• ranking
• permissions
• freshness

The system should also provide visibility into what information supported the answer.

Teams should be able to understand:

• what was retrieved
• which source was used
• why it was selected

That becomes especially important for enterprise trust and debugging.

Hybrid Retrieval for More Complex Agents

Some enterprise use cases require more than one retrieval method.

A Hybrid RAG Architecture can combine retrieval strategies to improve access to different types of enterprise information.

The knowledge architecture should match the actual information environment rather than forcing every document through a single retrieval pattern.

The Tool Layer

Knowledge helps the agent understand.

Tools allow the agent to act.

A tool may allow the agent to:

• retrieve an order
• update CRM data
• create a ticket
• send a request
• schedule an event
• generate a quote
• execute an enterprise API

Every tool should have a clear contract.

That contract should define:

• name
• purpose
• input parameters
• expected result
• possible errors
• permission scope

The clearer the tool definition, the easier it is for the agent to use correctly.

Tools Should Be Safe by Design

An agent should not have unrestricted access simply because a tool exists.

Enterprise tools should be:

• authenticated
• permissioned
• logged
• scoped

High-impact actions may also require human confirmation.

For example:

Agent prepares refund

→ user or authorized employee reviews

→ refund executed

This limits the risk of autonomous mistakes.

Reversibility Matters

Where possible, actions should be reversible.

An agent that creates a draft ticket is lower risk than one that permanently deletes records.

Tool architecture should therefore consider the impact of each action.

A useful classification is:

Read → retrieve information

Draft → prepare an action

Execute → perform action

High-impact execute → require stronger approval

This helps match controls to risk.

The Memory Layer

Memory allows agents to preserve useful context.

But “memory” is not one thing.

Enterprise agents usually need several different types.

Short-Term Memory

Short-term memory maintains the current conversation.

It helps the agent remember what was discussed earlier in the session.

For example:

User: Check order 142.

Agent: The order is delayed.

User: When will it arrive?

The agent needs short-term context to understand what “it” refers to.

Working Memory

Working memory tracks the current task.

For a multi-step workflow, it may store:

• what has been completed
• tool outputs
• decisions made
• remaining actions

This becomes especially useful for long-running agent workflows.

Long-Term Memory

Long-term memory stores persistent information across sessions.

This could include:

• user preferences
• previous interactions
• account context
• recurring requirements

Long-term memory introduces more governance risk than temporary memory.

Enterprises need explicit policies governing:

• what can be stored
• how long it is retained
• who can access it
• how it is isolated

Memory Isolation Is Critical

One of the most serious enterprise-agent failures is memory leakage.

Context from:

• another customer
• another user
• another department
• another tenant

should never appear in the wrong session.

Memory architecture therefore needs strong boundaries.

Isolation should be part of the system design rather than an afterthought.

Reasoning, Knowledge, Tools, and Memory Must Work Together

These layers cannot be designed independently.

The reasoning core depends on accurate tool descriptions.

The knowledge layer depends on reliable retrieval.

The tool layer depends on permissions.

The memory layer depends on isolation and retention policies.

For example:

Customer asks about an order

→ reasoning identifies intent

→ memory identifies current customer context

→ tool retrieves order

→ knowledge retrieves policy

→ agent determines permitted action

→ response generated

That is an agent system.

The language model is only one part of it.

Guardrails Around Agent Behavior

Enterprise agents also need explicit behavioral limits.

Guardrails may define:

• which tools an agent can use
• what data it can access
• which actions require approval
• which requests should be escalated

AI Security and Adversarial Testing becomes relevant for testing these boundaries before agents receive production access.

Guardrails should protect the system without making legitimate workflows unusable.

Human-in-the-Loop Controls

Not every decision should be autonomous.

Some actions may require human review because they affect:

• money
• access
• customers
• compliance
• sensitive data

A strong agent architecture can distinguish between:

recommend

and

execute

For high-risk workflows, the agent can gather information and prepare the action while keeping final approval with an authorized person.

Agent Observability

Traditional application monitoring is not enough for AI agents.

Teams may need visibility into:

• user request
• retrieval results
• selected tools
• tool inputs
• tool outputs
• errors
• final result

Without this information, failures become difficult to investigate.

Observability helps answer:

Why did the agent do that?

That question becomes increasingly important as agents gain more operational capability.

AI Agent Orchestration

As enterprises deploy multiple agents, another architectural challenge appears.

One agent may specialize in:

• support
• finance
• sales
• knowledge retrieval

These capabilities may need coordination.

An AI Agent Orchestration Platform can provide a control layer for routing tasks across agents, models, tools, and workflows.

The objective is to prevent independent agents from becoming another collection of disconnected systems.

Governance Must Cover the Whole Agent

Agent governance should not focus only on the model.

It should cover:

• models
• retrieval
• tools
• memory
• permissions
• actions
• logs

AI Governance and Compliance can provide policies around these layers.

An agent may use a reliable model and still create risk if:

• the wrong tool is available
• memory is not isolated
• permissions are excessive
• actions cannot be audited

Architecture and governance therefore need to evolve together.

A Practical Enterprise AI Agent Architecture

A production-oriented structure can be summarized as:

User / System Request

↓

Reasoning & Orchestration

↓

Knowledge Retrieval + Memory

↓

Tool Selection

↓

Permission / Guardrail Check

↓

Tool Execution

↓

Observation & Audit

↓

Response or Next Step

This architecture makes each stage easier to control and investigate.

It also allows individual layers to evolve without rebuilding the complete agent.

How Mobiloitte Supports Enterprise AI Agents

Mobiloitte supports organizations across:

• agent architecture
• tool integration
• RAG
• memory design
• orchestration
• guardrails
• enterprise APIs

The goal should not simply be to build an agent that performs well in a demo.

It should be to build a system that can operate reliably inside real enterprise boundaries.

AI Agent Orchestration and Agentic AI Workflows can support different parts of that operating model.

Conclusion

Enterprise AI agents are systems, not just models.

A strong architecture combines:

reasoning

• knowledge
• tools
• memory
• guardrails
• observability

The reasoning core decides what to do.

The knowledge layer provides trusted context.

Tools allow the agent to act.

Memory preserves useful state.

Guardrails define what the agent is allowed to do.

Observability shows what actually happened.

A demo proves that an agent can respond.

Architecture determines whether it can operate reliably in production.

Talk to Mobiloitte About Enterprise AI Agent Architecture

FAQs

1. What is AI agent architecture?

AI agent architecture is the system design that defines how an agent reasons, retrieves knowledge, accesses tools, manages memory, and operates within governance controls.

2. What is the reasoning core of an AI agent?

It is the model and orchestration logic that decides whether to answer, retrieve information, call a tool, request clarification, or execute additional steps.

3. Why are tools important for enterprise AI agents?

Tools let agents perform actions such as querying enterprise systems, updating records, creating tickets, or calling APIs.

AI API Integration & LLM Layer can support controlled integrations with these systems.

4. What is AI agent memory?

Agent memory preserves relevant context. It may include short-term conversational memory, working task state, or carefully governed long-term information.

5. How does RAG fit into AI agent architecture?

RAG provides an external knowledge layer so the agent can retrieve organization-specific information before producing an answer.

6. What is plan-and-execute agent architecture?

It is a pattern where the agent breaks a complex goal into multiple steps and executes them sequentially while adapting when needed.

7. Why are guardrails important for AI agents?

Guardrails restrict data access, tools, permissions, and high-impact actions so agents remain within approved boundaries.

AI Security and Adversarial Testing can help validate these controls.

8. What is the biggest enterprise AI-agent architecture risk?

There is no single risk in every deployment, but common high-impact failures include excessive tool permissions, memory leakage, weak retrieval, inadequate auditing, and insufficient control over agent actions.
